| ORG N-QTRS DISB | 1931 HARRISON 2150 HARRISON | 1893 1902 1917 |
The following set of drawings show the floor plan of Engine 33's quarters. After Engine 33 was disbanded the building was used as the fire department warehouse. The house survived until the 1950's when it was torn down to make way for an apartment building.
Photo Steve Hagy Collection

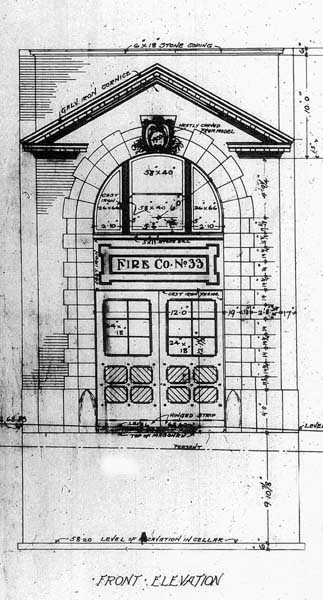

When compared to the photo, the drawing just doesn't give you an idea of what an attractive building this would become.
Photo Steve Hagy Collection
Harry Hake of Cincinnati designed many firehouses for the C.F.D. This drawing shows the west side of the station.
Photo Steve Hagy Collection

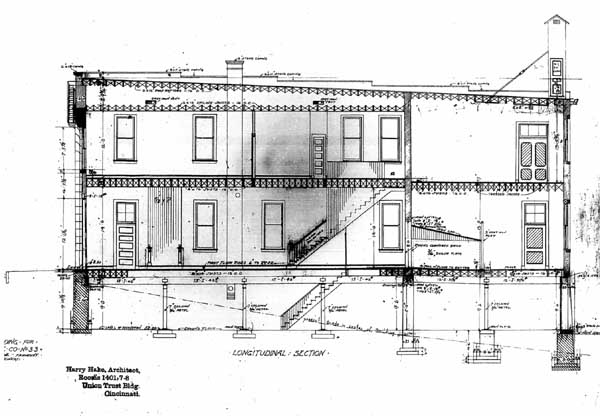

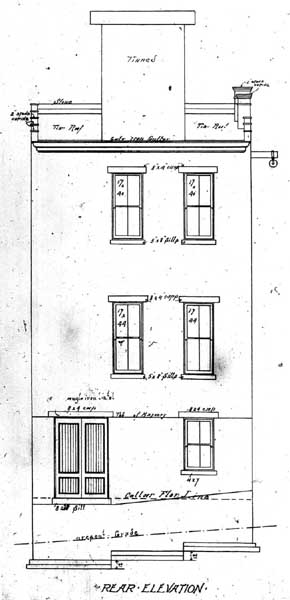

The station was 3 stories high at the rear as it was built into the hillside on the east side of Harrison Avenue.
Photo Steve Hagy Collection

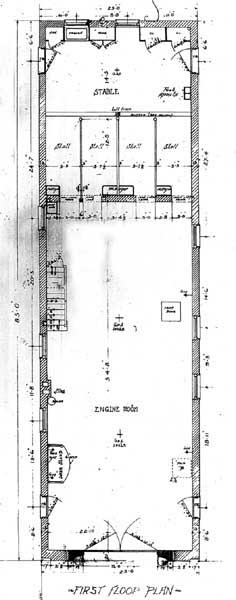

The Engine Room had a Joker Stand on the left side and a single sliding pole on the right. The stable and horse stalls occupied the rear of the apparatus floor.
Photo Steve Hagy Collection

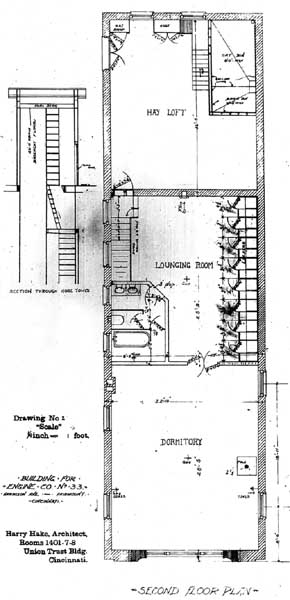

Notice the amount of space provided for the hay loft!
Photo Steve Hagy Collection
